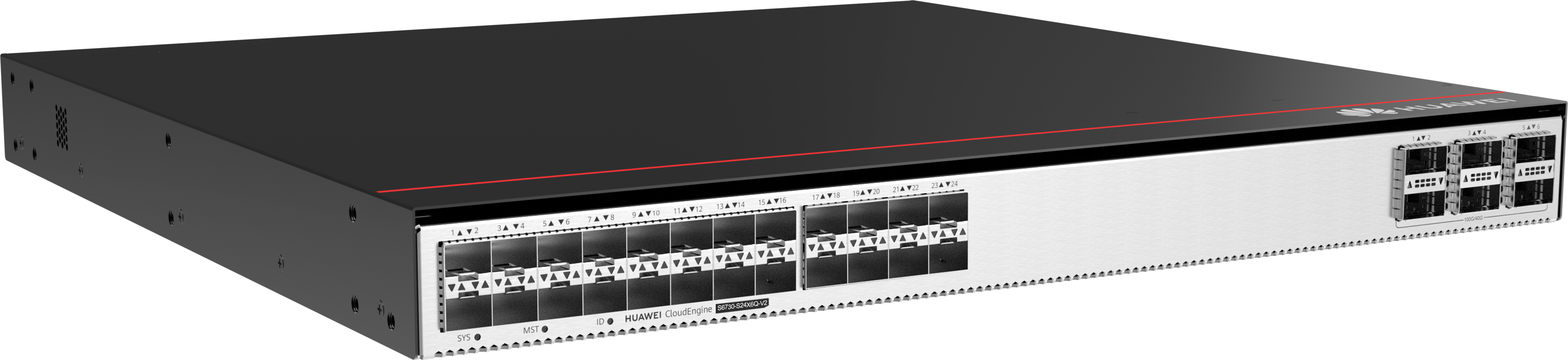

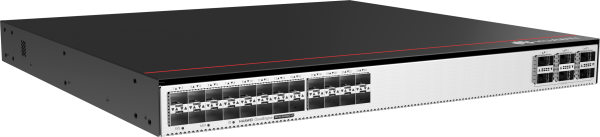

Коммутатор Huawei S6730-S24X6Q-V2

Цена	252 875 ₽ В наличии
Артикул	S6730-S24X6Q-V2
Производитель	Huawei

В корзину

Купить в 1 клик

При безналичном расчете цена не изменяется
Цена с НДС

Отгрузим на следующий день →
По Москве БЕСПЛАТНО
По России, в Казахстан, в Беларусь по тарифам транспортных компаний

Настроим оборудование
Подберем аналоги
Спроектируем сеть
Окажем техподдержку

Техническая документация производителя

Huawei S6730-S24X6Q-V2 Datasheet (pdf, 1.14 МБ)

Сопутствующие товары

Наименование	Артикул	Цена
Блок питания Huawei PDC1000S12-DB	PDC1000S12-DB	48 195 ₽	Купить
Блок питания Huawei PAC600S12-CB	PAC600S12-CB	42 500 ₽	Купить
Блок питания Huawei PAC600S12-DB	PAC600S12-DB	25 075 ₽	Купить

Описание

Product Model	CloudEngine S6730-S24X6Q-V2
Forwarding Performance	490 Mpps
Switching Capacity	1.68 Tbps/2.4 Tbps
Fixed Ports	24 x 1/10 GE SFP+, 6 x 40/100 GE QSFP28
Power Supply Type	Dual pluggable power modules, 1+1 power backup
MAC Features	• Automatic MAC address learning and aging • Up to 64K MAC address entries • Static, dynamic, and blackhole MAC address entries • MAC address learning limiting based on ports and VLANs
VXLAN Features	• Distributed and centralized VXLAN gateways • BGP EVPN • VXLAN configuration through NETCONF • VXLAN Layer 2 switching and VXLAN route switching
iPCA Quality Awareness	• Direct marking of service packets to obtain real-time statistics about dropped packets and packet loss rate • Two-way latency measurement for packets • Statistical interval modification
QoS	• Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority • Actions such as ACL, CAR, re-marking, and scheduling • Queue scheduling modes such as PQ, DRR, and PQ+DRR • Network slicing
Interoperability	• VBST (compatible with PVST/PVST+/RPVST) • LNP (similar to DTP) • VCMP (similar to VTP)

Basic Information
Part Number	02356VAN
Model	S6730-S24X6Q-V2
Description	S6730-S24X6Q-V2(2410GE SFP+ ports, 640GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28, without power module)
Technical Specifications
Remarks	By default, QSFP28 optical ports work at 40 Gbit/s. A 100GE RTU license can be used to upgrade the port rate to 100 Gbit/s. To configure the ports to work at 100 Gbit/s, run the license active command to activate the license, and then run the active port-license and port mode 100GE interface commands.
Chassis material	Metal
Chassis height[U]	1
Height[mm]	43.6 mm
Wide[mm]	442.0 mm
Depth[mm]	420.0 mm
Weight with packaging[kg(lb)]	8.9 (19.62)
Weight without packaging[kg(lb)]	5.62 (12.39)
Maximum power consumption[W]	High temperature 45°C (113°F), 100% traffic, and dual power modules: 181 W High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 254 W
Typical power consumption[W]	149
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Maximum heat dissipation[BTU/hour]	High temperature 45°C (113°F), 100% traffic, and dual power modules: 617.59 High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 866.67
Typical heat dissipation[BTU/hour]	508.4
Power supply mode	Pluggable power supply
Input voltage range[V]	- AC input: 90–290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC
Rated input voltage[V]	- AC input: 100 V AC to 240 V AC; 50/60 Hz - High-voltage DC input: 240 V DC - DC input: –48 V DC to –60 V DC
Maximum input current[A]	The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Number of power slots	2
Number of card slots	0
Memory	4 GB
Flash memory	Physical space: 2 GB
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch.
Types of fans	Pluggable
Noise at normal temperature (acoustic power)[dB(A)]	65
Noise at normal temperature (acoustic pressure)[dB(A)]	52
Airflow direction	Air intake from front, air exhaustion from rear (front-to-rear)
Storage temperature[°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating temperature[°C(°F)]	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate[°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).
Long-term operating relative humidity[RH]	5% RH to 95% RH, non-condensing
Storage altitude[m(ft.)]	0-5000 m (0-16404 ft.)
Long-term operating altitude[m(ft.)]	0-5000 m (0-16404 ft.)
MTBF[year]	62.27
MTTR[hour]	2
Availability	> 0.99999
Maximum number of physical ports on the entire device	30
Maximum number of 100GE ports	6 (with a license activated)
Maximum number of 40GE ports	6
Maximum number of 25GE ports	0
Maximum number of 10GE ports	24
Maximum number of GE ports	24
Maximum number of FE ports	0
100G optical interface	6
40G optical interface	6
10GE optical interface	24
USB	Supported
Console port	RJ45
Eth Management port	RJ45
Service port surge protection[kV]	-
Power supply surge protection	- AC power module configured: ±6 kV in differential mode, ±6 kV in common mode - DC power module configured: ±2 kV in differential mode, ±4 kV in common mode
RPS input	Not supported
PoE	Not supported

Преимущества при покупке Huawei S6730-S24X6Q-V2 в «Нетворк-МСК»:

✔️ Доставка по Москве, Санкт-Петербургу, в регионы России, в Казахстан, Беларусь

✔️ Оплата: наличный или безналичный расчет. Цена не изменяется

✔️ Оперативно подберем аналоги к S6730-S24X6Q-V2 или другое оборудование

✔️ Проектируем сети любой сложности

✔️ Настроим купленное у нас оборудование

✔️ Окажем профессиональную техподдержку

✔️ Гарантия 1 год (если не оговорено иное)

Оборудование S6730-S24X6Q-V2 сертифицировано Вы можете купить S6730-S24X6Q-V2 в магазине НЕТВОРК-МСК по выгодной цене со склада или под заказ. Коммутатор Huawei S6730-S24X6Q-V2: описание, технические характеристики, datasheet, инструкция, сопутствующие товары, аналоги. Подберём любое оборудование Huawei или его аналоги. Настроим. Звоните!
