Basic Information
Коммутатор Huawei S6750-H48X8C
| Цена | 816 000 ₽ В наличии |
| Артикул | S6750-H48X8C |
| Производитель | Huawei |
- При безналичном расчете цена не изменяется
- Цена с НДС
- Отгрузим на следующий день →
- По Москве БЕСПЛАТНО
- По России, в Казахстан, в Беларусь по тарифам транспортных компаний
- Настроим оборудование
- Подберем аналоги
- Спроектируем сеть
- Окажем техподдержку
Описание

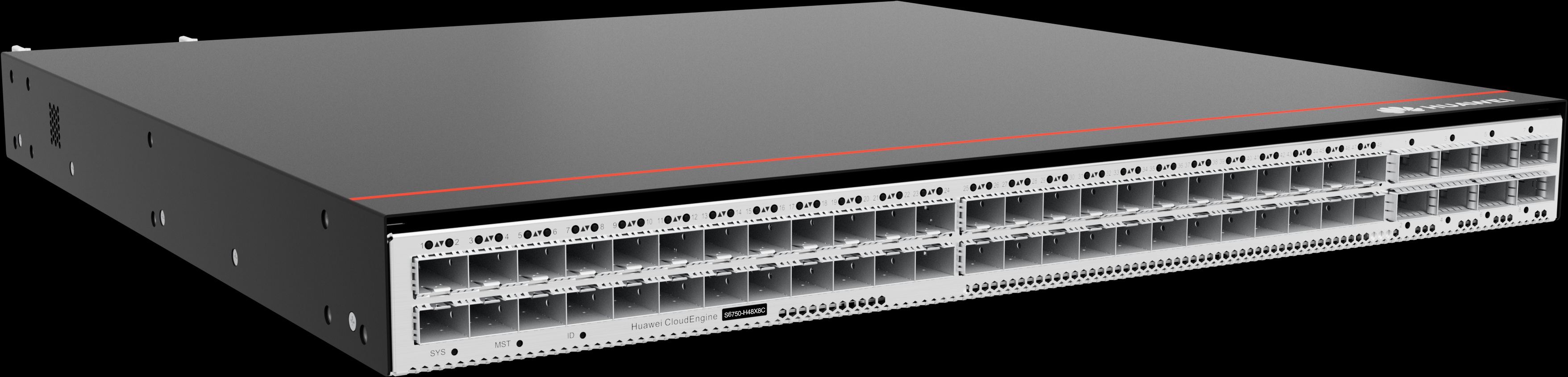

CloudEngine S6750-H48X8C (48*10GE SFP+ ports, 8*100GE QSFP28 ports, without power module)
Part Number | 02356VDW |
Model | S6750-H48X8C |
Description | S6750-H48X8C (48*10GE SFP+ ports, 8*100GE QSFP28 ports, without power module) |
Technical Specifications | |
Chassis material | Metal |
Chassis height[U] | 1 |
Height[mm] | 43.6 mm |
Wide[mm] | 442.0 mm |
Depth[mm] | 420.0 mm |
Weight with packaging[kg(lb)] | 11.23 kg (24.76 lb) |
Weight without packaging[kg(lb)] | 6.96 kg (15.34 lb) |
Maximum power consumption[W] | 100% traffic under the ATIS standard and dual power modules: 232 W High temperature 45°C (113°F), 100% traffic, and dual power modules: 333 W |
Typical power consumption[W] | 30% traffic under the ATIS standard and dual power modules: 218 W |
Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
Maximum heat dissipation[BTU/hour] | 100% traffic under the ATIS standard and dual power modules: 791.61 High temperature 45°C (113°F), 100% traffic, and dual power modules: 1136.23 |
Typical heat dissipation[BTU/hour] | 30% traffic under the ATIS standard and dual power modules: 743.84 |
Power supply mode | Pluggable power supply |
Input voltage range[V] | - AC input: 90 V AC to 290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC |
Rated input voltage[V] | - AC input: 100 V AC to 240 V AC; 50/60 Hz - High-voltage DC input: 240 V DC - DC input: –48 V DC to –60 V DC |
Maximum input current[A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
Number of power slots | 2 |
Number of card slots | 0 |
Memory | 8 GB |
Flash memory | Physical space: 4 GB |
Redundant power supply | 1+1 Pluggable AC and DC power modules can be used together in the same switch. |
Types of fans | Pluggable |
Noise at normal temperature (acoustic power)[dB(A)] | 58.4 |
Noise at normal temperature (acoustic pressure)[dB(A)] | 57.2 |
Airflow direction | Air intake from front, air exhaustion from rear (front-to-rear) |
Storage temperature[°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
Long-term operating temperature[°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
Restriction on the operating temperature variation rate[°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). |
Long-term operating relative humidity[RH] | 5% RH to 95% RH, non-condensing |
Storage altitude[m(ft.)] | 0-5000 m (0-16404 ft.) |
Long-term operating altitude[m(ft.)] | 0–5000 m (0–16404 ft.) |
MTBF[year] | 35.18 |
MTTR[hour] | 2 |
Availability | > 0.99999 |
Maximum number of physical ports on the entire device | 56 |
Maximum number of 100GE ports | 8 |
Maximum number of 40GE ports | 8 |
Maximum number of 25GE ports | 0 |
Maximum number of 10GE ports | 48 |
Maximum number of GE ports | 48 |
Maximum number of FE ports | 0 |
100G optical interface | 8 |
10GE optical interface | 48 |
USB | Supported |
Console port | RJ45 |
Eth Management port | RJ45 |
Service port surge protection[kV] | - |
Power supply surge protection | - Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode - Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode |
RPS input | Not supported |
PoE | Not supported |
| Product Model | CloudEngine S6750-H48X8C |
| Forwarding Performance | 1200 Mpps |
| Switching Capacity | 4Tbps/ 8Tbps* |
| Fixed Ports | 48 x 1/10 GE SFP28, 8 x 40/100 GE QSFP28 ports |
| Power Supply Type | 1+1 power backup |
| MAC Features | • MAC address learning limiting based on ports and VLANs • Static, dynamic, and blackhole MAC address entries • Source MAC address filtering • MAC address learning limiting based on ports and VLANs |
| VXLAN Features | • Distributed and centralized VXLAN gateways • BGP EVPN • VXLAN configuration through NETCONF • VXLAN route switching |
| iPCA-based Quality Awareness (Native-IP IFIT) | • Direct marking of service packets to obtain real-time statistics about dropped packets and packet loss rate • Two-way latency measurement for packets • Statistical interval modification |
| QoS | • Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority • Actions such as ACL, CAR, re-marking, and scheduling • Queue scheduling modes such as PQ, DRR, and PQ+DRR • Network slicing |
| Interoperability | • VBST (compatible with PVST/PVST+/RPVST) • LNP (similar to DTP) • VCMP (similar to VTP) |
